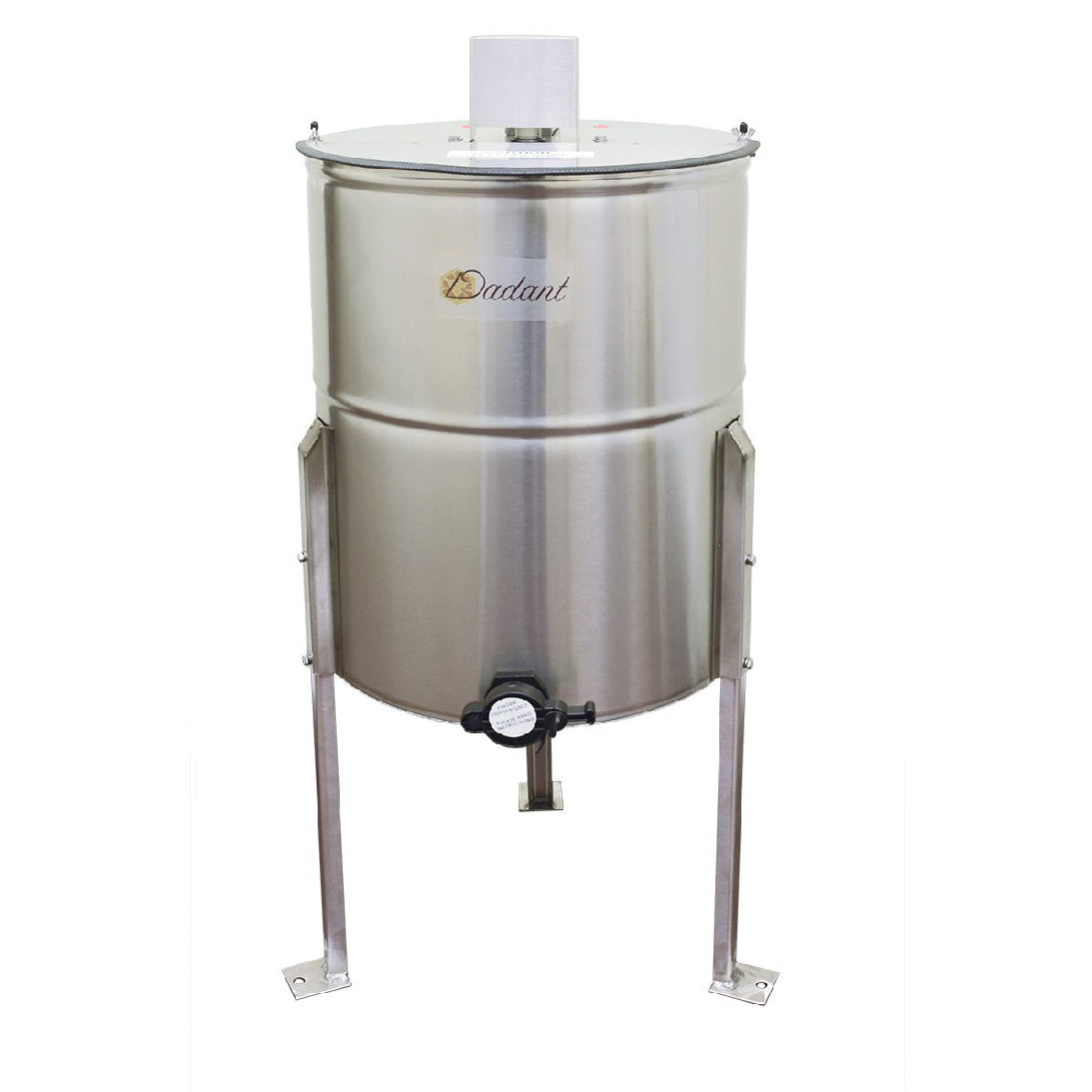

6-Frame Hand Extractor w/Legs

6-Frame Radial Extractor
Easy to Assemble | Dual-Use Extractor & Storage Tank

• Dimensions: 18" diameter, 40" high (floor to top of tank), 16" (floor to bottom of gate)
• Construction: All stainless steel, aluminum, and nylon — no paint or plating to chip or peel
• Tank: Fully welded, 24-gauge Type 304 food-grade stainless steel (satin finish) for long-lasting, rust-free durability

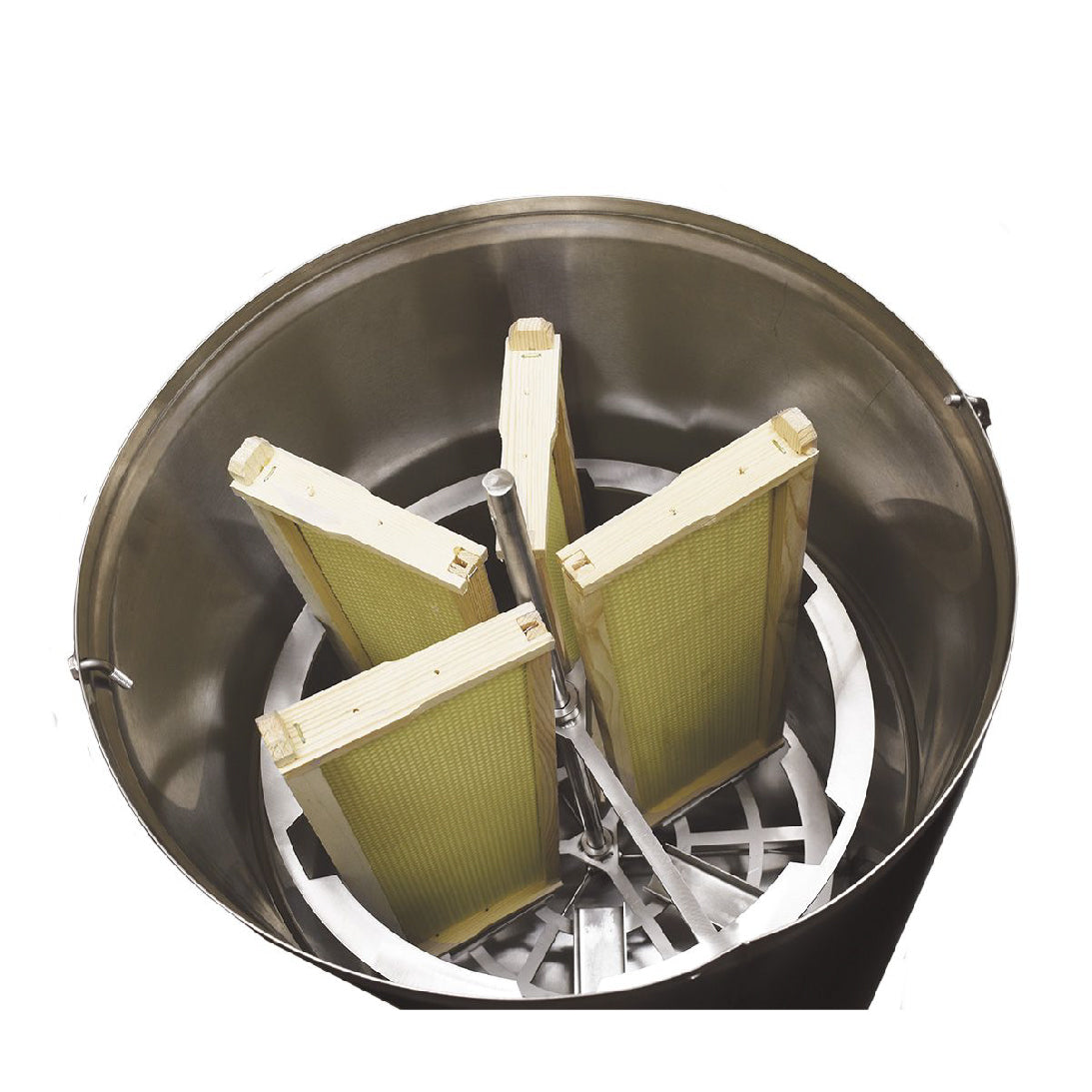

• Capacity: Holds six 6-1/4" or shallower frames radially with secure placement

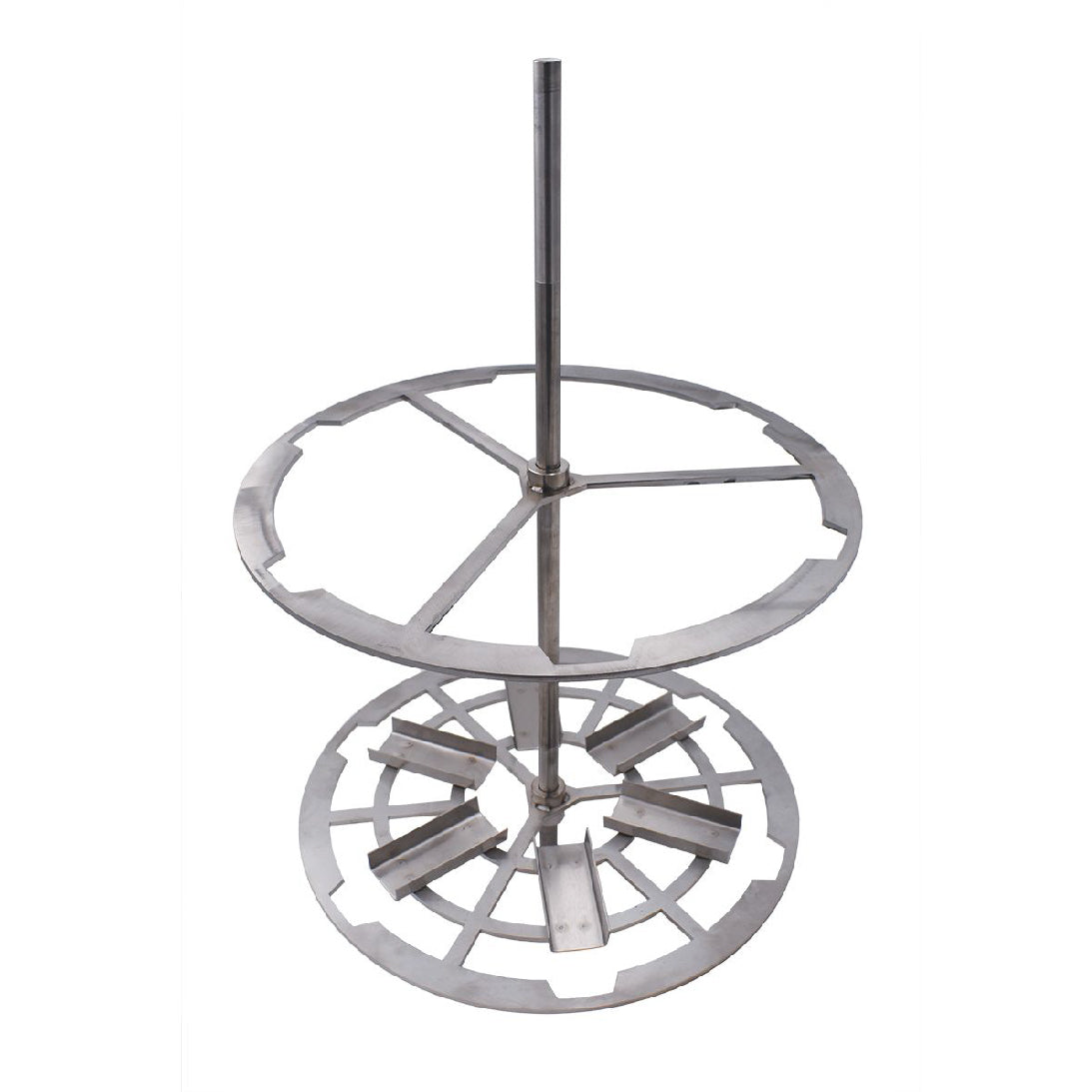

• Reel: Stainless steel, laser-cut with spot-welded clips for positive frame placement

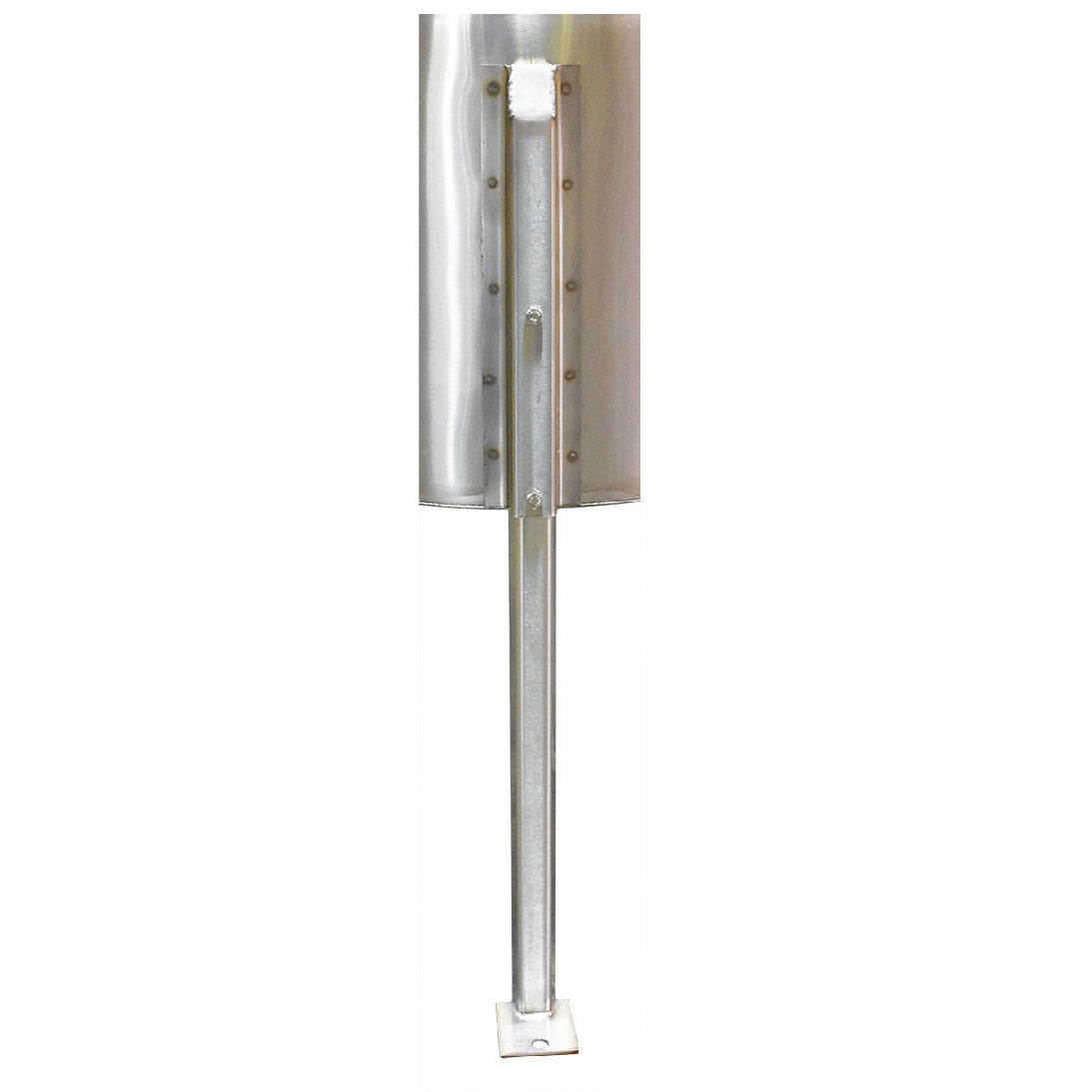

• Legs: Bolt-on legs (included) allow clearance for a 5-gallon pail under the honey gate

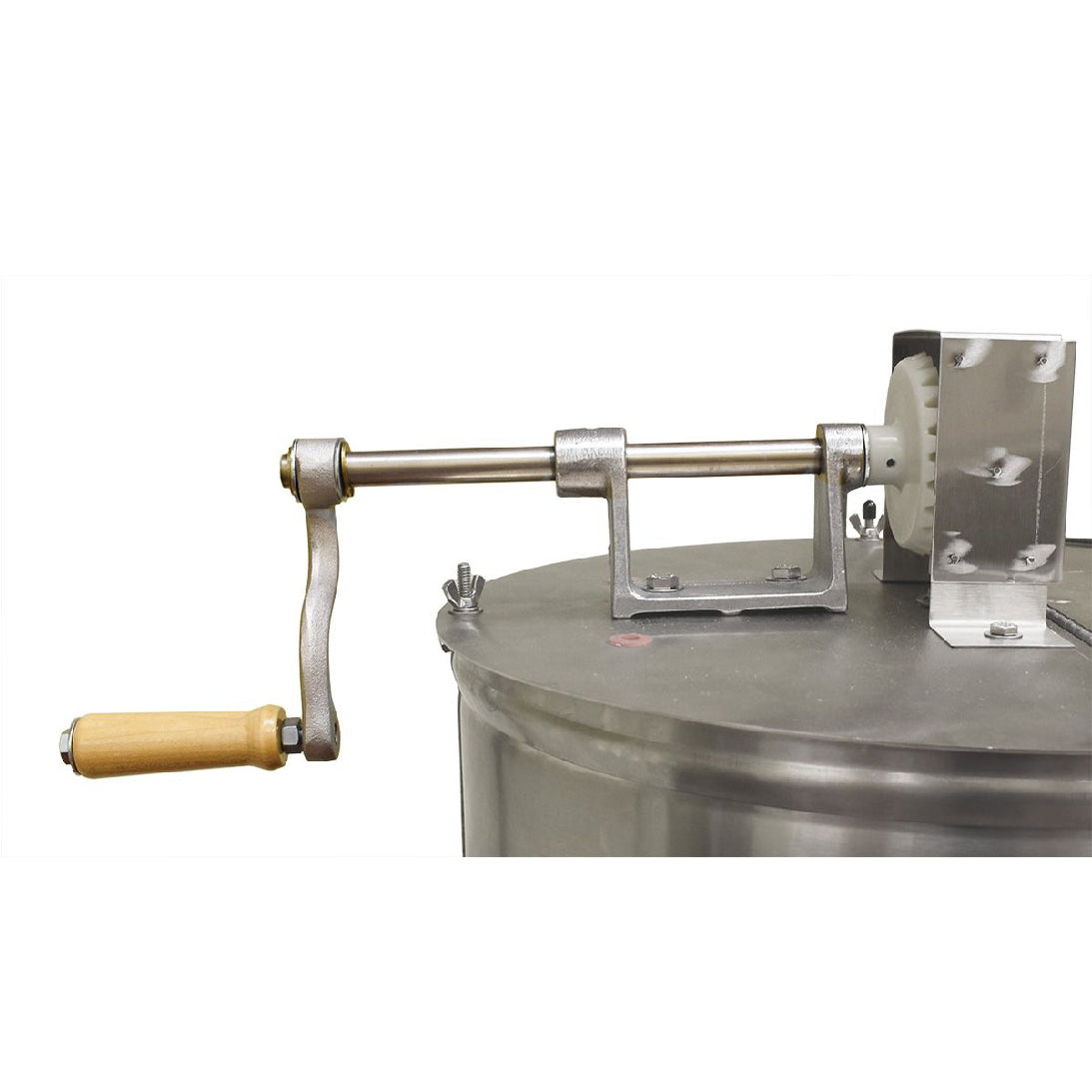

• Disengaging Handle: Engages in one direction only for added safety—hold the handle while the reel spins down safely
• Dual-Use Function: Remove three wing nuts to convert into a 300 lb. honey storage tank

Optional accessories sold separately:

• 18” Storage Tank Cover (MOO534)
• 18” Strainer Screen (MOO495)
