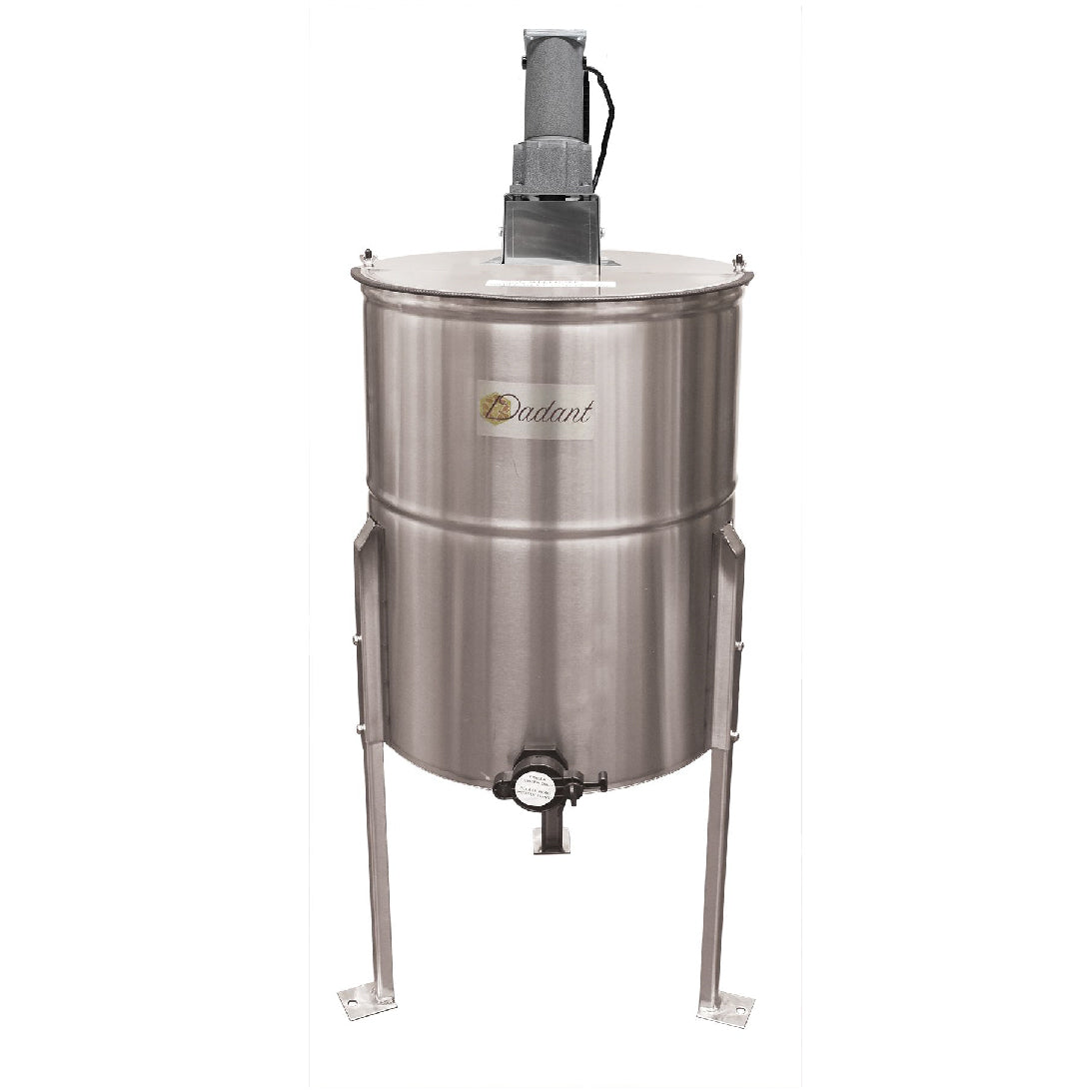

6-Frame Power Extractor w/ Legs

6-Frame Radial Extractor

• Dimensions: 18" diameter, 40" high (floor to tank top), 16" (floor to bottom of gate)
• Capacity: Holds six 6-1/4" or shallower frames radially per load
• Construction: All stainless steel and nylon—no paint or plating to peel
• Tank: Fully welded stainless steel

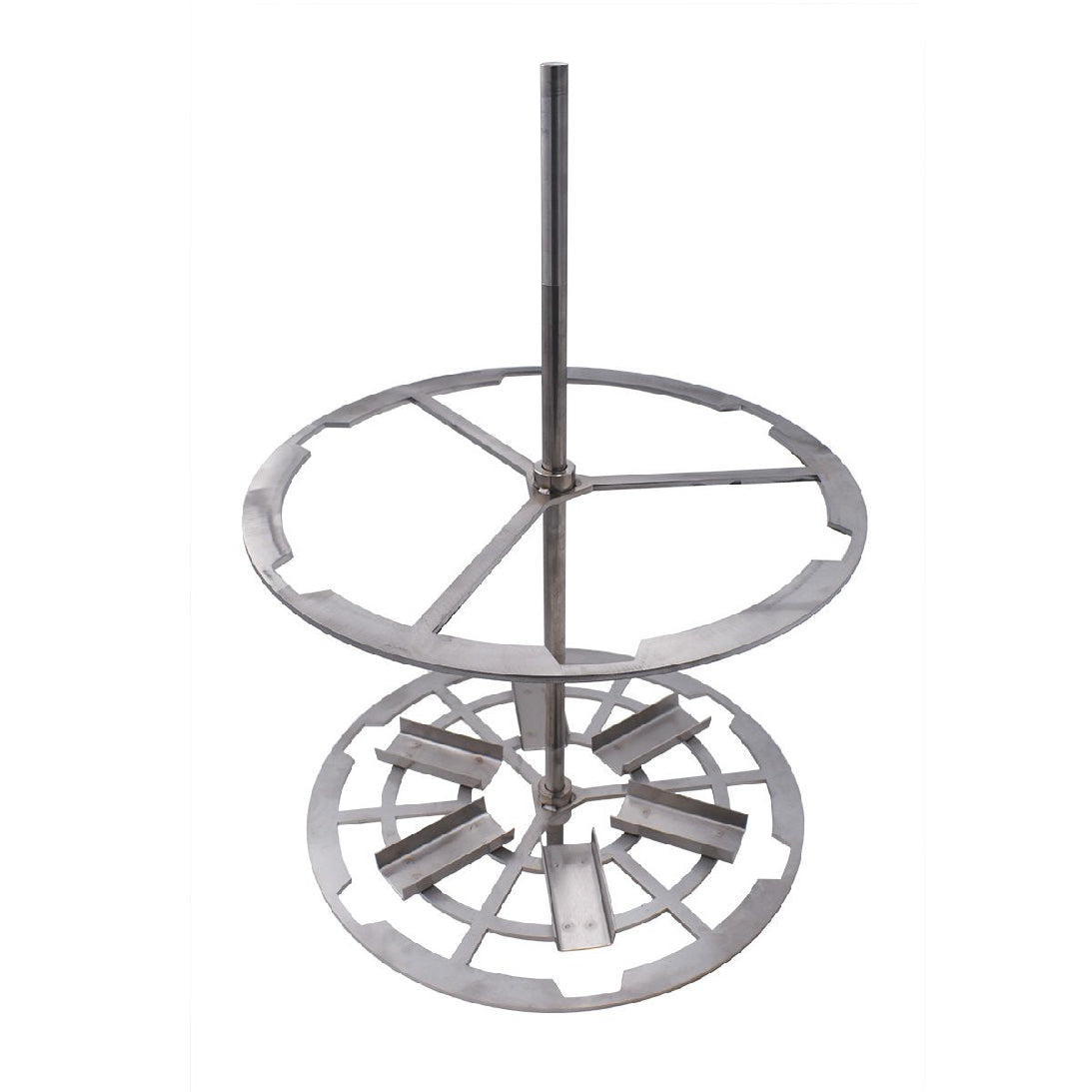

• Reel: Stainless steel, laser-cut with spot-welded clips for secure frame placement

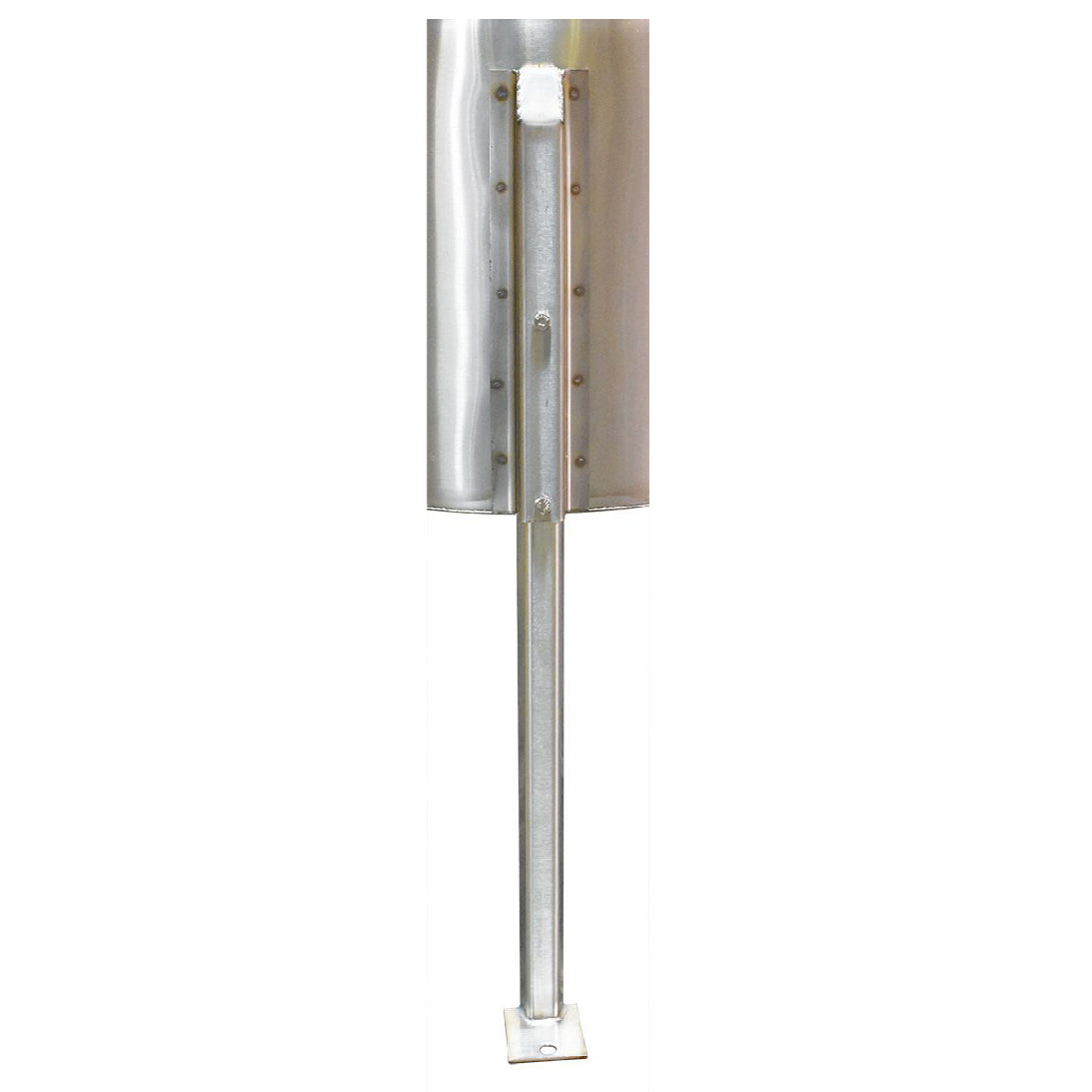

• Legs: Easy assembly—bolt-on design with clearance for a 5-gallon pail under the honey gate

Efficiency:

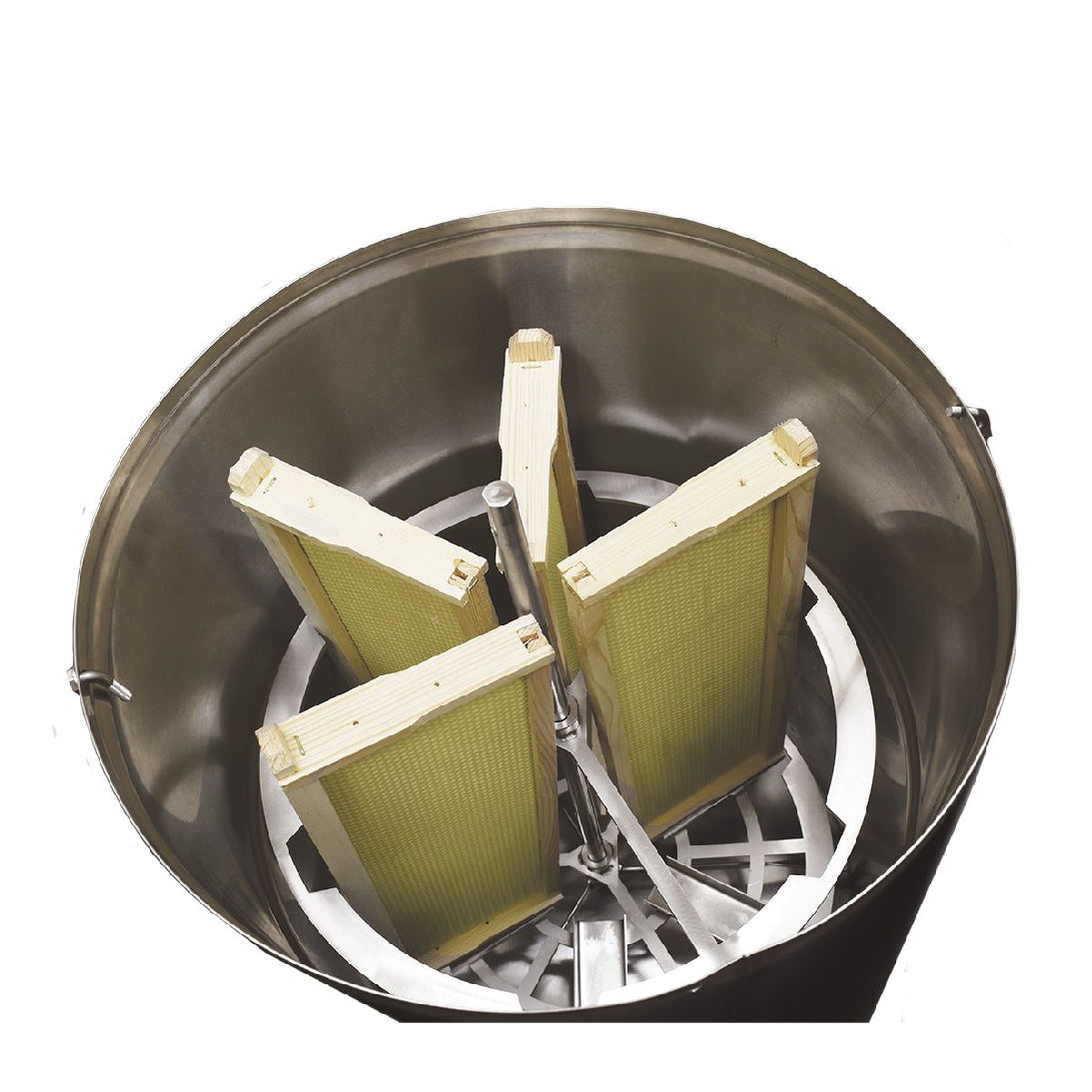

Radial design uses centrifugal force to extract honey from both sides of the comb simultaneously—no flipping required. Frames sit like spokes in a wheel, minimizing comb damage by directing pressure to the top bar.
